Medical Laparoscopic Robotic Ropes




I. Advantages:

  • Specifically designed for high-precision equipment such as medical robots, endoscopes, industrial endoscopes, and robotic systems.
  • To meet the precision requirements of endoscopes in confined spaces, the wire rope must possess exceptional flexibility and outstanding mechanical properties.


II. Structure:

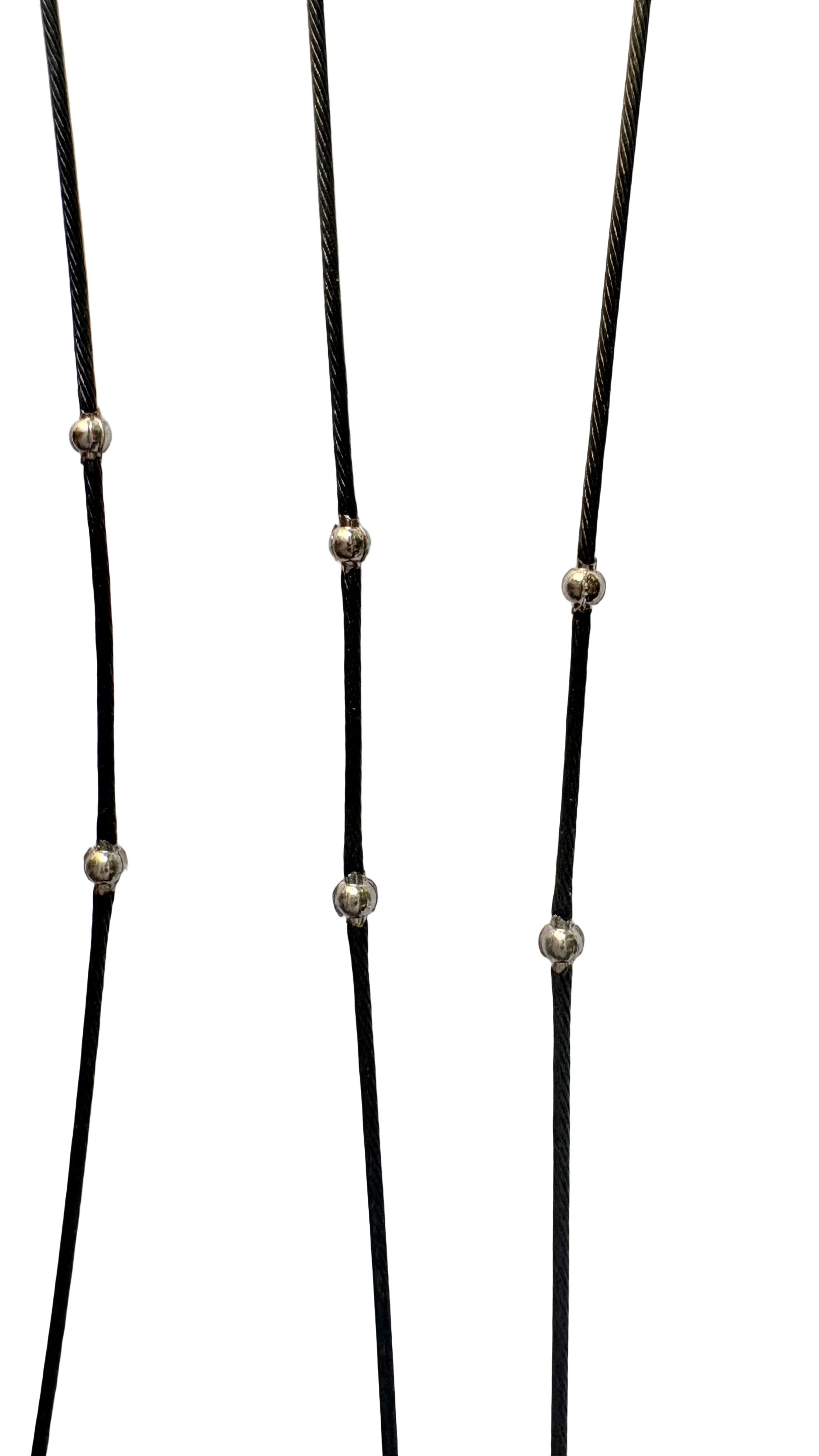

Medical Laparoscopic Robotic Rope Structure Diagram 1


Medical Laparoscopic Robotic Rope Structure Diagram 2
Figure 1: Laparoscopic Robotic Rope Application Scenario

III. Applications:

Precision equipment such as medical robots, endoscopes, industrial endoscopes, and robotic systems.

1. Features:

  • Outstanding Fatigue Life: Demonstrates significantly superior ultimate life compared to foreign products in both static simulation testing and mechanical testing.
  • Full Range & Customizable: Covers all mainstream wire gauges and supports development of finer specifications to meet specialized and emerging field requirements
  • Flexible Terminal Customization: End connectors designed per customer specifications for high compatibility
  • High-Precision Transmission: Low elongation rate ensures precise and stable operation during minimally invasive procedures
  • Consistent Quality & Reliability: Completed device testing and simulation comparison tests with multiple clients


2. Performance Parameters:

Parameter Table:

Diameter Spec (mm) Material Structure Breaking Strength (N)
0.30 Tungsten Wire Rope 7X7+8X19 ≥200
0.45 Tungsten Wire Rope 7X7+8X19 ≥400
0.50 Tungsten Wire Rope 7X7+8X19 ≥450
0.50 Tungsten Wire Rope 7X37 ≥330
Table 1: Parameter Table
